HQG-100D low-speed precision cutting machine
Main Features:
the iqualitrol HQG-100D is an economical low-speed precision cutting machine, especially suitable for cutting small, soft, brittle, special-shaped metal materials, composite materials, plastics, electronic components, biological materials, ceramics, cement, rock and mine And other materials are also commonly used for thin sheet sample preparation.
The machine adopts weight block load gravity feed straight cutting, and automatically stops after the cutting is completed. Using a micrometer device, the thickness of the sample can be adjusted to achieve precise cutting.
It adopts touch screen control, clear and humanized, and the cutting wheel speed is controllable. In order to avoid burns to the sample due to overheating during cutting, the machine has a built-in movable coolant tank.
During the cutting process, the diamond cutting blade rotates to bring out cooling water, so that the cutting blade and sample material are cooled, and the sample after cutting The surface is bright and smooth, without burns. The equipment has the characteristics of compact body, small footprint, convenient operation, use and maintenance. ,
It is one of the sample preparation equipment used in the metallographic test of colleges, universities, factories and enterprises.
Technical Specifications:
| Input power |
Single phase AC220V, 50Hz |
| Motor Power |
300W |
| Cutting ability |
25mm |
| Cutting sheet specifications |
Φ100×0.3×Φ12.7mm |
| Cutting speed |
50〜1000rpm |
| Cutting method |
Gravity feed straight cut |
| Counterweight loading |
0-450g |
| Micrometer feed |
0-25mm |
| Positioning accuracy |
0.01mm |
| Operation method |
touch screen |
| cooling method |
Water cooling |
| Automatic stop |
Stop automatically after cutting |
| Equipment size |
335×330×365mm |
| weight |
30KG |
Packing list:
| Model |
Product Name |
Quantity unit |
Quantity |
| HQG-100D |
Low speed precision cutting machine |
Set |
1 |
| Product Accessories |
Quantity unit |
Quantity |
Remarks |
| inner hexagon spanner |
Set |
1 |
|
| Diamond cutting blade |
Piece |
1 |
Φ100×0.3×Φ12.7mm
Already installed on the device
|
| Cutting fluid |
Bottle |
1 |
|
| Flat jaw clamp |
Set |
1 |
Single saddle clamp
Double saddle clamp
Teardrop clamp
Optional
|
| Inlay fixture |
Set |
1 |
| Irregular jig |
Set |
1 |
| Technical documents |
1. One copy of product manual 2. One copy of product certificate |
|
|

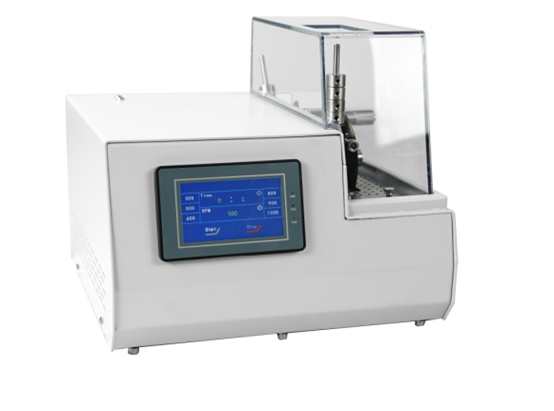

HQG-100D low-speed precision cutting machine Images
|
